1.5hp Waterway 48 Frame Executive Spa Pump, 115V

<< Previous in Waterway Executive 48 Next in Waterway Executive 48 >>

: $269.00
Manufacturer: Waterway Plastics
Manufacturer Part No: 3420610-1A

* denotes required field

Pump Union Fittings (see bottom of this page)*

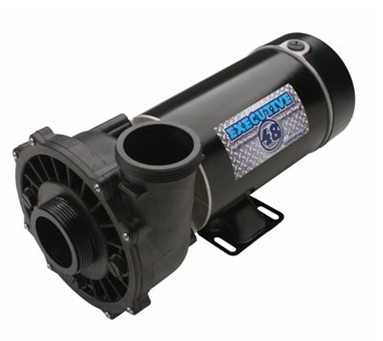

1.5 hp 48 Frame Waterway Executive Spa Pump
1.5hp 48 Frame Executive Spa Pump wet end assembled to a 48 frame 1.5hp 2-speed 115V spa motor.
This spa pump has a 2 inch intake and a 2 inch discharge for plumbing (but measures 3 inches - see bottom of this page)
Manufacture No. 3420610-1A Other Part No. PF-15-2N11C4
Features:
  • Executive wet end designed specifically for 48-frame motors
  • 2 inch intake for improved flow performance and reduced noise
  • Large 6-1/2 inch diameter wet end for higher head pressure
  • Thermally protected to extend life expectancy of motor
  • Highly versatile wet end can be rotated every 90 degrees

Man. Part No.

Horsepower

Voltage

3420610-1A

1.5

115

3420820-1A

2.0

230

3421221-1A

3.0

230V

3421821-1A

4.5

230V

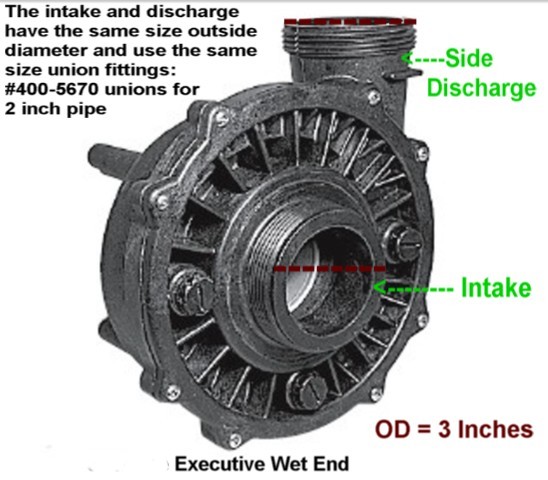

How to measure for the 1.5hp 48 frame Executive:

Pump Union Fittings for Executive 2 inch Plumbing

Manufacture No. 3420610-1A Other Part No. PF-15-2N11C4

Related Products

Waterway Pump Union 400-5670
: $9.00
Waterway Pump Union 400-5670
Man. Part No. 400-5670 2 inch pump union for Hi-flo and 2 inch Executive
