Waterway Executive 56 Frame (GE Marathon) 4hp, 230V
5KCP49UN9096X2-1/2 inch Executive Wet End2 inch Wxecutive Wet End |
|
Part Number: 5KCP49UN9096X/WATERWAY
Manufacturer: GE Marathon Electric
Manufacturer Part No: 5KCP49UN9096X/WATERWAY
* denotes required field
Choose Intake Size*
Add Pump Unions?
|

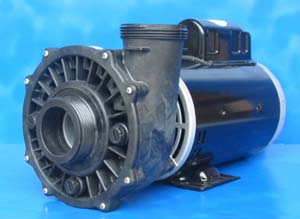

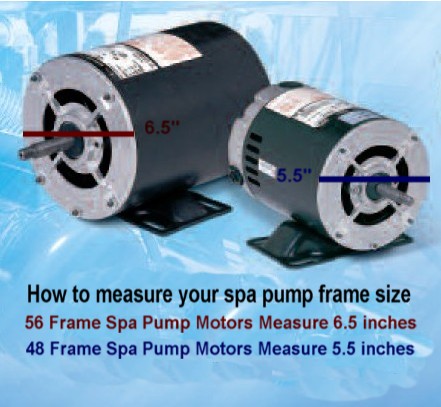

Waterway Plastics 56 Frame Executive spa pump wet end assembled to a GE Marathon 56 frame, 4hp, 230V hot tub motor with 2 or 2-1/2" intake & 2 inch discharge Man Part No. 5KCP49UN9096X (motor) Replaces Waterway Model # PF-40-2N22C, Man. # 3721621-1D (2 inch intake) Man. # 3721621-13 (2-1/2 inch intake) See below for measuring your wet end IF YOU NEED THE SINGLE SPEED PUMP PART # GE Motor #5KCP49UN9099X, 7135, 9099X or Waterway Part # PF-40-1N22C, Man. # 3711621-1D (2 inch intake) Man. # 3711621-13 (2-1/2 inch intake) CLICK HERE Replacement / Used in these models: Gulf Coast Spas, LX Series, La-Z-Boy Spas, Pilates H2O Spas, Freestyle Spas, LX 11000, LX11000, LX 9000, LX9000, LX 8000, LX8000, LX 7000, LX7000, LX 5000, LX5000, DX-5000 & IX40,Garden Leisure Spas Models: 1102, 1103, 1104, 1105, 1106, 1108 & 1109, Pilates H20 Models: XP1, XP2, XP3,Freestyle Spas Models: Roma, Tuscany, Sicilia & Veneto,Centurion Spas Models: C-1061, C-740 & C-852,Cool Nights Spas Models: CN10000, CN7000, CN8000, CN9000 & CN5000,La-Z-Boy Spas Models: Limited 1801, Limited 1304, Huntington, Providence, Reserve, Costco/St. Lucia Spas models: 850Lei, 864 Lei, 854in,Hydro Spa models: Platinum I, Platinum II, Elite Spas, Legend, Legend II and many Mark II Series spas and many others. Oher Part Numbers: Motor# 7136, Wet end #310-1750HS Complete pump Part# 7054 Product Code: 5131200 Pump Assembly for many Gulf Coast Spas Cool Nights Series, Garden Leisure spas (2006-2009), Pilates H20 Spas, Cool Night Spas, Centurion Spas, La-Z-Boy Spas, Freestyle Spas Hydro Spas, and St. Lucia Spas sold at Costco Features:
-
Executive spa pump wet end designed specifically for 56-frame spa motors
-
Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
-
Two speed spa motors have four sets of insulated windings for increased efficiency
-
12.0/3.9 AMPS
-
56 frame spa motor for added strength, cooler operating temperature and longer motor life
-
Large 2 or 2-1/2 inch intake for improved flow performance and reduced noise
-
Large 6-1/2" diameter wet end for higher head pressure
-
Split capacitor, (start and run) for less energy consumption
-
Thermally protected to extend life expectancy of hot tub motor
-
Highly versatile wet end can be rotated every 90 degrees
-
Viton seals
Part No. 400-5670 for 2 inch plumbing Part No. 400-6010 for 2-1/2 inch plumbing Part Numbers related to this product 5KCP49UN9096X, 3721621-1D, 3721621-13, PF-40-2N22C, Marathon 5kcp49un9096x 5KCP49UN9096X,ge marathon,ge motors,hot tub motors,spa motors,ge spa motor,ge hot tub motor,general electric spa motor,general electric hot tub motor,pool and spa motors,replacement hot tub motor,56 frame spa motor,amp spa motor,3hp spa motor,4hp sp
Replacement / Used in these models: Gulf Coast Spas, LX Series, La-Z-Boy Spas, Pilates H2O Spas, Freestyle Spas, LX 11000, LX11000, LX 9000, LX9000, LX 8000, LX8000, LX 7000, LX7000, LX 5000, LX5000, DX-5000 & IX40,Garden Leisure Spas Models: 1102, 1103, 1104, 1105, 1106, 1108 & 1109, Pilates H20 Models: XP1, XP2, XP3,Freestyle Spas Models: Roma, Tuscany, Sicilia & Veneto,Centurion Spas Models: C-1061, C-740 & C-852,Cool Nights Spas Models: CN10000, CN7000, CN8000, CN9000 & CN5000,La-Z-Boy Spas Models: Limited 1801, Limited 1304, Huntington, Providence, Reserve, Costco/St. Lucia Spas models: 850Lei, 864 Lei, 854in,Hydro Spa models: Platinum I, Platinum II, Elite Spas, Legend, Legend II and many Mark II Series spas and many others.Motor# 7136, Product Code: 5131200 Pump Assembly for many Gulf Coast Spas Cool Nights Series, Garden Leisure spas (2006-2009), Pilates H20 Spas, Cool Night Spas, Centurion Spas, La-Z-Boy Spas, Freestyle Spas Hydro Spas, and St. Lucia Spas sold at Costco,7136,310-1750HS,7054
a motor,5hp spa motor,hot tub replacement motor,56 frame hot tub motor,56j,56y,2 speed,two speed spa motor,spa motor,ge marathon electric,marathon electric, Waterway Executive 56, 3720421-1D,3720821-1D,3721221-1D,3721621-1D,3722021-1D,PF-40-2NCC,PF-50-2N22C,waterway spa pump,waterway hot tub pump,waterway spa motor,waterway hot tub motor,executive 56Waterway Executive 56, 3720421-1D,3720821-1D,3721221-1D,3721621-1D,3722021-1D,PF-40-2NCC,PF-50-2N22C,waterway spa pump,waterway hot tub pump,waterway spa motor,waterway hot tub motor,executive 56,
Gulf Coast Spas,LX Series,La-Z-Boy Spas,Pilates H2O Spas,Freestyle Spas,LX11000,LX11000,LX 9000,LX9000,LX 8000,LX8000,LX 7000,LX7000,LX 5000,LX5000,XP1,XP2,XP3, 7135, 7136
|
|
|
|
|
Pump/Motor Vibration Pad.
|
|
|
|
|
Waterway Barbed Adapter fitting for Waterway Spa Pump. 672-4350
|
|
|
|
|
Man. Part No. 400-5670
2 inch pump union for Hi-flo and 2 inch Executive
|
|
|
|
|
Man. Part No. 400-6010
2-1/2 inch pump union for Executive Spa Pumps
|
|
|
|
|
Waterway Plastics threaded buttress union adapter. Manufacturer's Part No. 415-6010 Use to make a 2 inch pump wet end 2.5 inches (measures 3" ID and 3-3/8" OD)
|
|
|
|
|

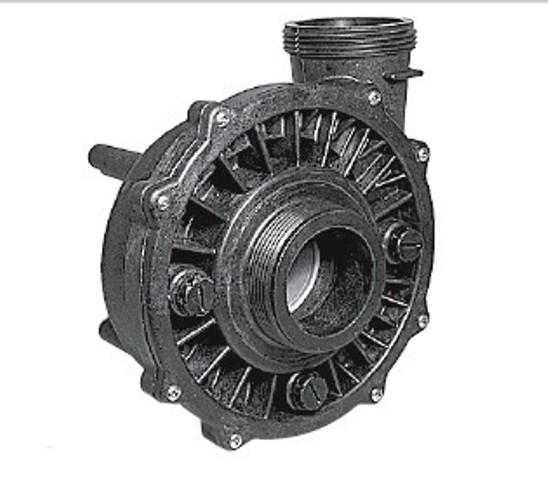

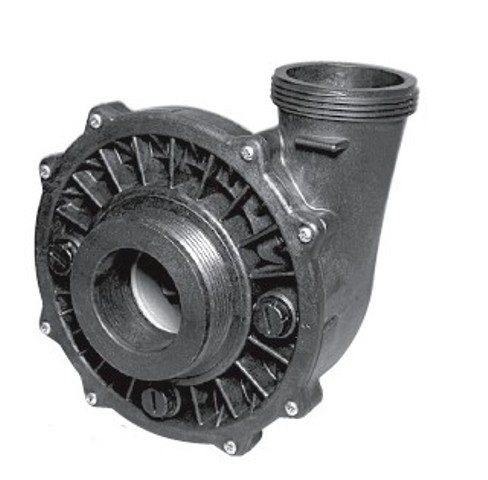

Waterway Executive spa pump wet end for 56 frame motors. Available in 2" or 2-1/2" intake Manu Part No. 310-1740, 310-1750, 310-1440, 310-1510
|
|
|
|
|

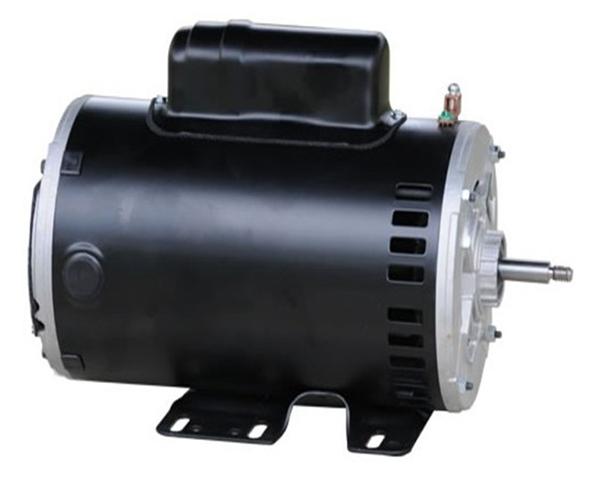

GE Marathon Spa Pump Motor. 4.0/5.0HP, 2-Speed, 56 Frame, 230V 12.0 / 3.9 AMPS , Part # 5KCP49UN9096X,7136,513167
|
|
|
|
|
Use this J&J mini pump cord to plug your pump into our spa control. Order with spa control and save.
|
|
|
|
|
3HP,4HP,5HP 12.0/4.0 AMP 56 Frame 2 speed, 230V US Motor, TT505, R63MWENA-4727 US Motor/ Emerson/ AO Smith/ Century replacement motor
|
|
|
|
|
AO Smith / Century / Magnetek 4hp 230V 2-speed, 56 Frame motor B2235,7-187563-02,187563,7-196018-01,196018,7-F56AA57A01-05
|
|
|
|
|
2 Inch Heater Tailpiece O-Ring Gasket for stainless steel heater manifold. Also used for the 2 inch Waterway Spa Pumps.
|
|
|
|
|
2-1/2 Inch Heater Tailpiece O-Ring Gasket for stainless steel heater manifold. Also used for the 2-1/2 inch Waterway Spa Pumps. Use for Waterway Viper and someExecutive pumps with 2-1/2 inch intake.
|
|
|
|
|
