Waterway Viper 56 Frame (GE Marathon) 4hp, 230V Spa Pump

<< Previous in Waterway Executive 56 Next in Waterway Executive 56 >>

: $360.00
Part Number: 5KCP49UN9096XVIPER
Manufacturer: GE Marathon Electric
Manufacturer Part No: 5KCP49UN9096XVIPER

* denotes required field

Add Pump Unions?*
Waterway Viper 56 Frame Spa Pump, 4HP, 230V
Waterway Plastics Viper 56 frame pump wet end assembled to a GE Marathon Electric 56 frame motor
4 hp, 2-speed, 230V hot tub motor
Replaces Waterway Man. No. 3721621-1T
Used for Larger Hot Tubs with 2-1/2' plumbing. Also great for Swim Spas.
Also can replace Aqua Flo Master XP3,FMXP33022, EMERSON TT505,XP33022,XP3633022,R63MWENA-4727,AF 93526950
Motor Numbers that can replace this pump: AO Smith Century Lasar, Magnetek Cat# B235, 7-187563-02, Emerson TT505, BALBOA US Motor 1016205-NHP, PUUMC23025852FR

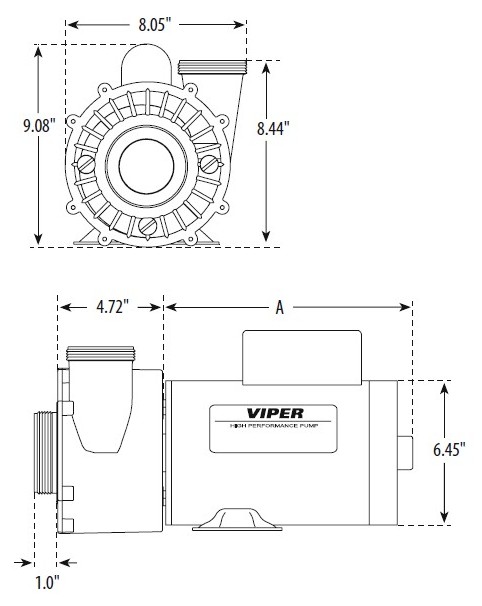

NOTE: SEE PICTURE OF WET END ABOVE TO MEASURE INTAKE AND DISCHARGE. BOTH MEASURE 3-1/2' OUTSIDE DIAMETER FOR USE WITH 2-1/2 INCH PIPE
IF YOUR'S MEASURES 3" OUTSIDE DIAMETER USE THIS PUMP : click here
FEATURES:
  •  Viper wet end designed specifically for 56 frame motors
  •  Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
  • Two speed motors have four sets of insulated windings for increased efficiency
  •  56 frame motor for added strength, cooler operating temperature and longer motor life
  • 230V, 2-Speed, 12.0 / 3.9 Amps, GE Marathon Electric Motor, Model No. 5KCP49UN9096X
  •  Large 2-1/2“ Intake for improved flow performance and reduced noise
  •  Large 8” diameter wet end for increased volume capacity
  •  Split Capacitor, (start and run) for less energy consumption
  •  Thermally protected to extend life expectancy of motor
  •  Viton Seals

  Pump Union Part No. 400-6010 for 2-1/2 inch plumbing

Part Numbers related to this product 5KCP49UN9096X, 3721621-1T, Aqua Flo Replacement, Aqua Flo Master XP3, FMXP, XP33022, XP3633022, EMERSON # TT505, AQUA FLO NO. 93526950, R63WENA-4727
