3hp Waterway 48 Frame Executive Spa Pump, 230V

<< Previous in Waterway Executive 48 Next in Waterway Executive 48 >>

: $289.00
Part Number: 3421221-1A
Manufacturer: Waterway Plastics
Manufacturer Part No: 3421221-1A

* denotes required field

Pump Union Fittings (see bottom of this page)*

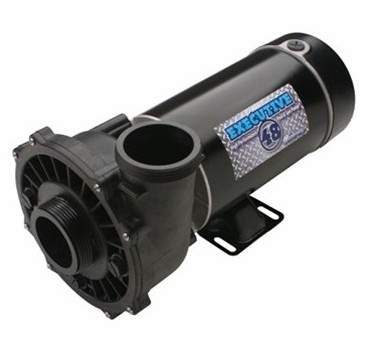

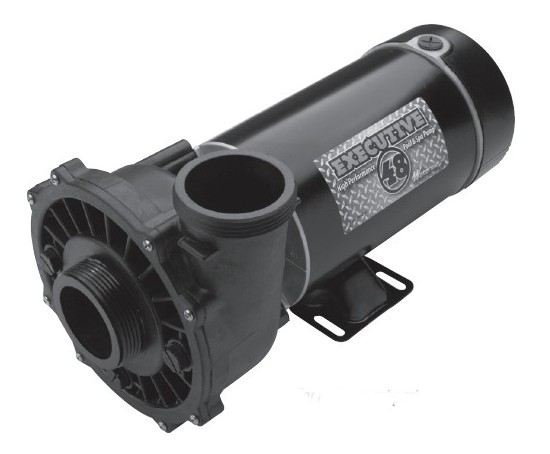

3hp 48 Frame Waterway Executive Spa Pump

3hp 48 Frame Executive Spa Pump wet end assembled to a 48 frame 3hp 2-speed 230V spa motor.

This spa pump has a 2 inch intake and a 2 inch discharge for plumbing (but measures 3 inches - see bottom of this page)
Manufacture No. 3421221-1A Other Part No. PF-30-2N22C4



Features:

  • Executive wet end designed specifically for 48-frame motors
  • 2 inch intake for improved flow performance and reduced noise
  • Lare 6-1/2 inch diameter wet end for higher head pressure
  • Thermally protected to extend life expectancy of motor
  • Highly versatile wet end can be rotated every 90 degrees
Man. Part No.
Horsepower
Voltage
3420610-1A
1.5
115
3420820-1A
2.0
230
3421221-1A
3.0
230V
3421821-1A
4.5
230V

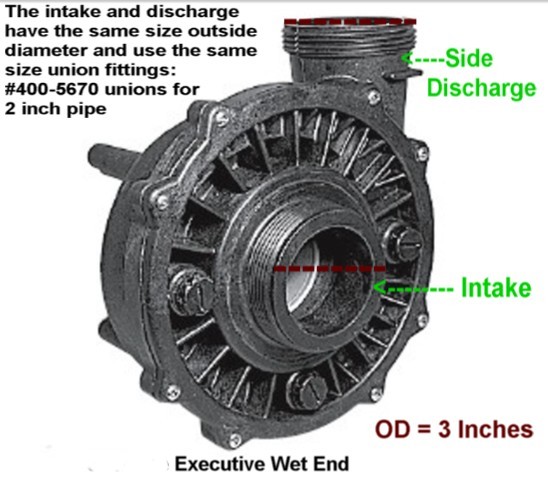

How to measure for the 3hp 48 frame Executive:

Pump Union Fittings for Executive 2 inch Plumbing


Manufacture No. 3421221-1A Other Part No. PF-30-2N22C4
