Waterway Executive 56 Frame Spa Pump, 5HP, 230V

<< Previous in Waterway Executive 56 Next in Waterway Executive 56 >>

: $339.00
Part Number: 3722021-13,3722021-1D
Manufacturer: Waterway Plastics
Manufacturer Part No: 3722021-13, 3722021-1D

* denotes required field

Intake size*

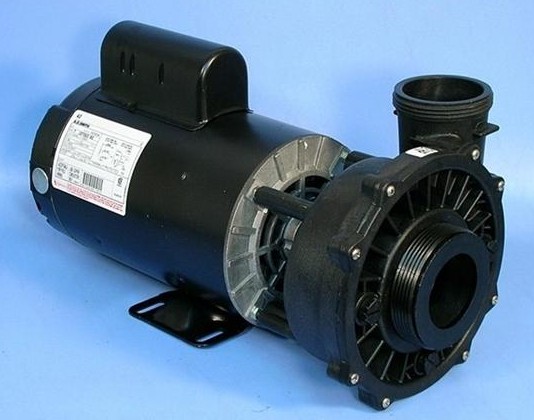

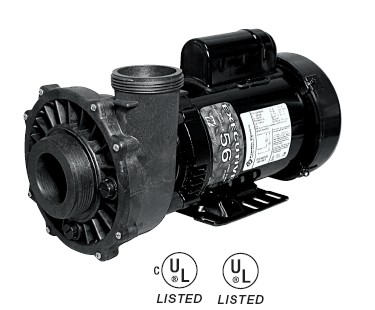

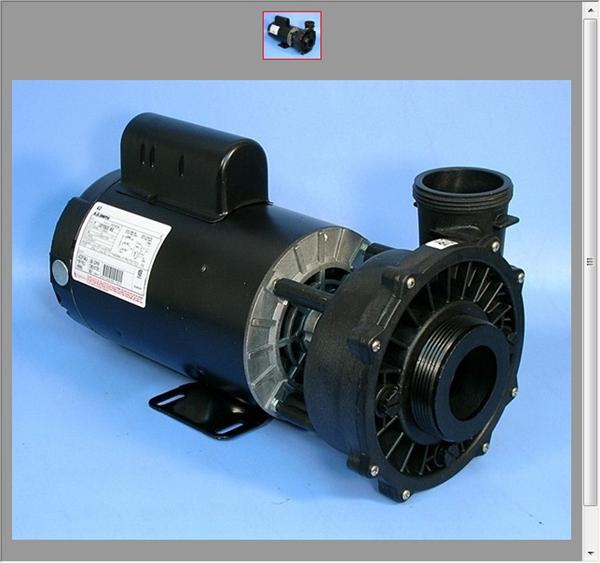

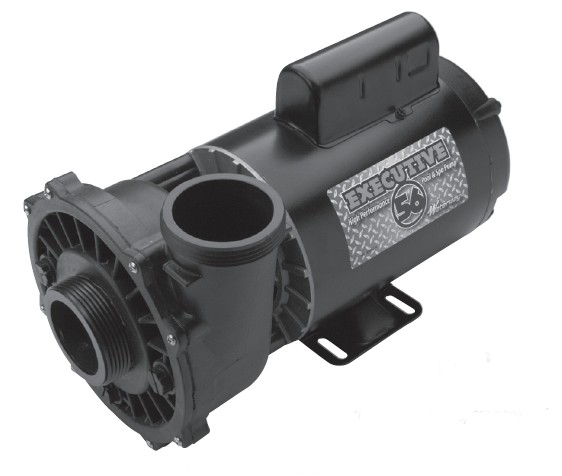

Waterway Executive 56 Spa Pump, 5 HP, 230V
Waterway Executive 56 Frame spa pump wet end
assembled to a 56 frame, 5hp,16.4/4.8A, 2-speed 230V spa motor
Choose intake size :
2 inch intake and 2 inch discharge -Part No. 3722021-1D
2-1/2 inch intake and a  2 inch discharge -Part No. 3722021-13
(2-1/2 inch intake measures 3-1/2 inch and 2 inch intake measures 3 inch- see bottom of this page)

Other Part No. PF-50-2N22C
Features:
  • Executive spa pump wet end designed specifically for 56-frame spa motors
  • Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
  • Two speed spa motors have four sets of insulated windings for increased efficiency
  • 56 frame spa motor for added strength, cooler operating temperature and longer motor life
  • Choose  2 inch or Large 2-1/2 inch intake for improved flow performance and reduced noise
  • Large 6-1/2" diameter wet end for higher head pressure
  • Split capacitor, (start and run) for less energy consumption
  • Thermally protected to extend life expectancy of hot tub motor
  • Highly versatile wet end can be rotated every 90 degrees
  • Viton seals

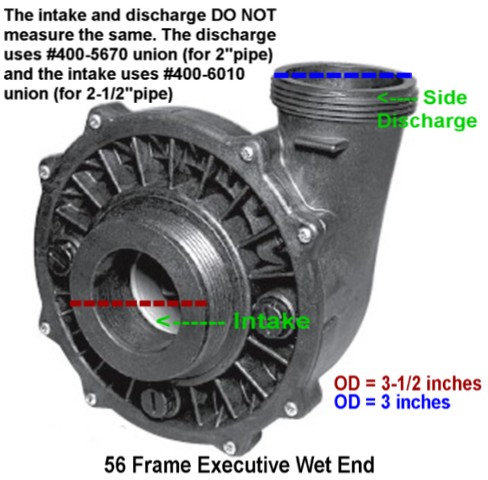

How to measure for the Waterway Executive 56 frame Spa Pump

Manufacturer Part No. 3722021-1D



Manufacturer Part No. 3722021-13
