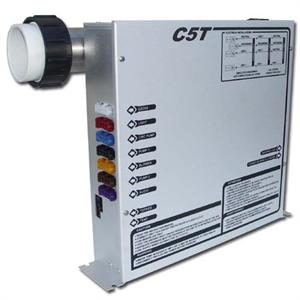

United Spas C5 T Digital Spa Control System with T7 Topside Control

<< Previous in Spa Controls & Packs Next in Spa Controls & Packs >>

List: $449.00
: $379.00
You Save: $70.00 (16 %)
Part Number: CTT7
Manufacturer: United Spas
Manufacturer Part No: CTT7

* denotes required field

More Options*
United Spas C5 T Digital Spa Control System with T7 Topside control
Top Mount Flo-Thru Stainless Steel Heater
Learn more about the LED bulb - click here
Learn more about the United Spa Controls on You Tube- Click Here

We can help you customize your spa control. Just email us  or give us a call (727)944-5525 with any questions
Standard Features:
- Self-Standing Aluminum Control
-Dual-Voltage (120V/240V) Operation*
- T7 Digital Topside
- Topside Adapter/ Extension Face Plate
- 2 Speed 1st Pump Ready w/Cord included 240V/120V -12V
- 1 Speed 2nd Pump Ready 240V/120V - 12A
- Circulation Pump Ready 240V/120V - 2A
- Aux/ Air Blower Ready 240V/120V -12A
- Spa Light Ready w/Cord 12V -.9A or 120V - 2A
- Ozone Ready 240V/120V -1A
- Audio Ready 240V/120V - 4A
- Flo-Thru Stainless Steel Heater, 25 GPM Minumum

- 13H X  19"W X 6"D (without white heater tail pieces)
- T7 Topside Dimensions: 5" x 2.5"
- Adapter Face Plate Dimensions:  8-1/4" x 3-3/8"
- The included T7 Topside requires a 1.75" hole saw to install

* Transformer is factory set to 240V incoming power, but can be easily converted to 120V (See C5 Installation Manual).

 When installing you simply need to program the topside to operate the components in your customer's spa!

NOTE: These units come standard with the cords for the light and a two speed primary pump, if additional AMP cords are needed please check out the 'Cords and Receptacles' section of the store. If you order them above with the spa control you will save a couple of dollars.
The C5 Series electronic controls now feature our fifth generation electronic power board, the B9 power board. The new B9 board feature 'zero-crossing' technology. This means that the relays are now only engaged at the optimal zero crossing of AC power, which is easier on the relays, and easier on the components in the spa. Every trace on these boards have been carefully engineered, with low voltage circuitry separated from high-voltage circuitry, and utilizing solid brass bars instead of printed copper traces for high voltage power. This unique design ensures the safety and longevity of our control systems.

With the addition of the new dual-voltage transformers, the C5 control series are now the only controls on the market that come out of the box ready to operate at 120V or 240V (3-wire or 4-wire), at 50Hz or 60Hz, and configurable to 40 different hardware configurations. That makes any C5 capable of operating almost any spa, anywhere in the world, right out of the box!

We have included the Topside Extension Plate if you are replacing a larger topside then the T7.  Be sure to order a 1/4" Thermowell/Bushing (dry sensor well/housing) if the spa you are installing the control into doesn't already have one installed. (Available as an option above)
