United Spas C5 L Digital Spa Control System with T7 Topside control

<< Previous in Spa Controls & Packs Next in Spa Controls & Packs >>

List: $475.00
: $433.00
You Save: $42.00 (9 %)
Out of stock
Part Number: CLT7
Manufacturer: United Spas
Manufacturer Part No: CLT7, C5L

Cords
More Options

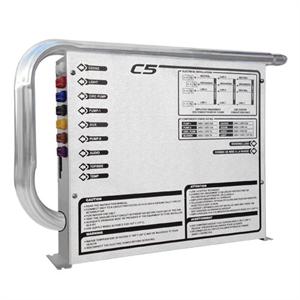

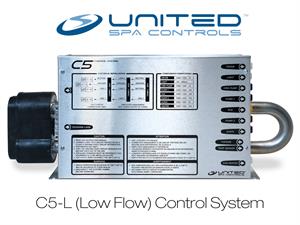

United Spas C5 L Digital Spa Control System with T7 Topside control
3/4 Inch Low-Flow Heater
FREE SHIPPING!
Learn more about the LED bulb - click here
Learn more about the United Spa Controls on You Tube- Click Here

We can help you customize your spa control. Just email us Tech@spaquip.com  or give us a call (727)944-5525 with any questions.

Standard Features:
- Self-Standing Aluminum Control
- T7 Digital Touch-panel Topside
- Topside Adapter/ Extension Face Plate
- 2 Speed 1st Pump Ready w/Cord included 240V/120V -12V
- 1 Speed 2nd Pump Ready 240V/120V - 12A
- Circulation Pump Ready 240V/120V - 2A
- Aux/ Air Blower Ready 240V/120V -12A
- Spa Light Ready w/Cord included 12V -.9A or 120V - 2A
- Ozone Ready 240V/120V -1A
- Audio Ready 240V/120V - 4A
-
Low-Flo 3/4"B Stainless Steel 4kw Heater for use with low-flow circulation pumps
ETL Listed (USA & Canada - File: 119733)
UL STD 1563 - 5th Edition  CSA C22.2 NO. 218.1

Dimensions:
- 11.25"H X 20.50"W X 6.50"D (without white heater tail pieces)
- 8.00 lbs. (without  topside/cable)
- Mounting Hole Dimensions 13.25" X 2.63"
- T7 Topside Dimensions: 5" x 2.5"
- Adapter Face Plate Dimensions:  8-1/4" x 3-3/8"
- The included T7 Topside requires a 1.75" hole saw to install

NOTE: These units come standard with the cords for the light and a two speed primary pump, if additional AMP cords are needed please check out the 'Cords and Receptacles' section of the store. If you order them above with the spa control you will save a couple of dollars.
The C5 Series electronic controls now feature our fifth generation electronic power board, the B8 power board. The new B8 board feature 'zero-crossing' technology. This means that the relays are now only engaged at the optimal zero crossing of AC power, which is easier on the relays, and easier on the components in the spa. Every trace on these boards have been carefully engineered, with low voltage circuitry separated from high-voltage circuitry, and utilizing solid brass bars instead of printed copper traces for high voltage power. This unique design ensures the safety and longevity of our control systems.

  C5 control boxes with the new B8 board now ship with our new dual-voltage transformers. The days of swapping out transformers to switch between 240V and 120V power hook-up are over! With these new transformers, and the addition of two additional 2-wire receptacles to the B8 board, incoming power voltage can be switch by moving the transformer's 2-pin power selector plug between the B8's 120V and 240V receptacles.

With the addition of the new dual-voltage transformers, the C5 control series are now the only controls on the market that come out of the box ready to operate at 120V or 240V (3-wire or 4-wire), at 50Hz or 60Hz, and configurable to 40 different hardware configurations. That makes any C5 capable of operating almost any spa, anywhere in the world, right out of the box!
Voltage shown 240V  Voltage Shown 120V

We have included the Topside Extension Plate if you are replacing a larger topside then the T7.  Be sure to order a 1/4" Thermowell/Bushing (dry sensor well/housing) if the spa you are installing the control into doesn't already have one installed. (Available as an option above)
