Waterway EX2, 48 Frame Spa Pump, 3.0/4.0hp, 230V

<< Previous in Waterway Spa Pumps Next in Waterway Spa Pumps >>

: $309.00
Part Number: 3421821-1U
Manufacturer: Waterway Plastics
Manufacturer Part No: 3421821-1U

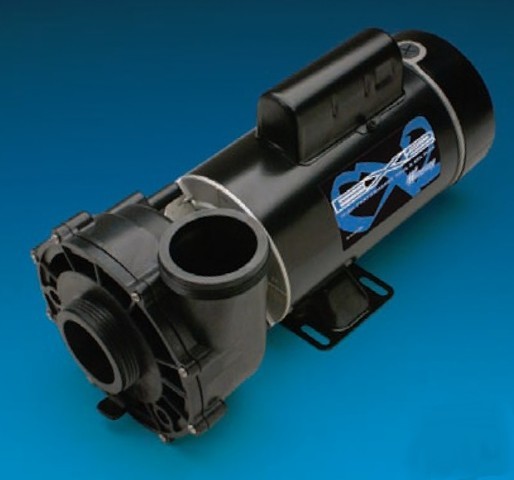

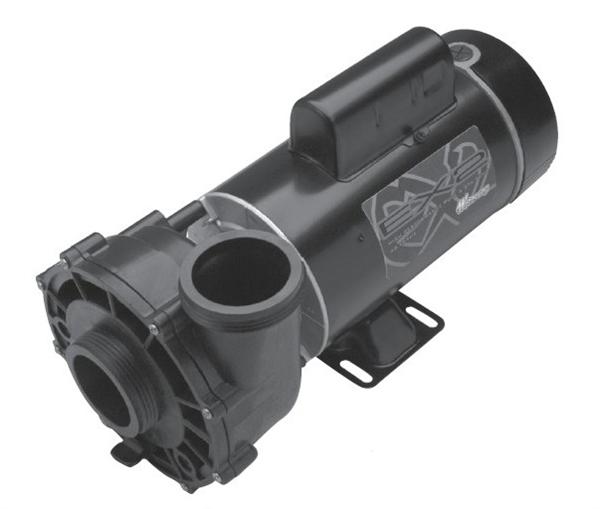

Waterway Plastics EX2 Spa Pump, 2hp hot tub pump, 230V

48 Frame
2-speed, 12.0 / 3.5 Amps
230V, 60 Hz

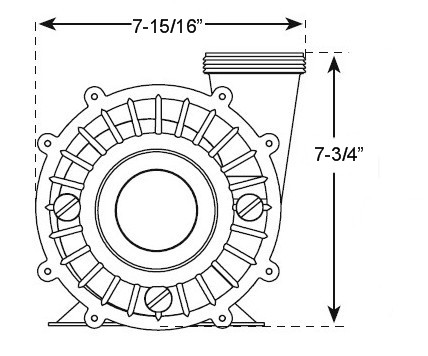

2” intake and a 2” discharge (measures approx. 3" OD)

Man. Part No. 3421821-1U
Also Replaces Aqua Flo XP2 & XP2e  0613095-2040 FMXP, 06130000, XP2553022,EX-40-2N22CE

Features:
  • True continuous rated horsepower
  • 48 Frame, Dual Speed (energy saving)
  • Use more jets per pump
  • Same physical size as Aqua-Flo XP2, XP2e (fits within the same volume envelope)
  • Can be used as a substitute or retrofit to Aqua-Flo model XP2 or XP2e pumps
  • Can also replace similar pumps and wet ends offered by other domestic and foreign suppliers
  • Made in USA with highest quality materials with UL and CUL certifications
  • CE and TUV certification on export pumps to ensure product performance for you and your customers
  • Equipped with the highest quality Viton Seals
  • Equipped with high efficiency electrical motors, custom designed for spa applications

Manufacture Part No.
Horsepower HZ Voltage Amps *Replaces Aqua-Flo Part No.
 3420610-1U 1.5 FULL RATED 60 115 13.8 / 3.6 06115000-1040
3421021-1U 2.0 FULL RATED 60 230 9.0 / 2.8 06120500-2040
3421020-1U 2.5 FULL RATED/ 3.0 UP RATED 60 230 11.0 / 3.3 06125000-1040
3421821-1U 3.0 FULL RATED/ 4.0 UP RATED 60 230 12.0 / 3.5 0613095-2040

*There may be several other Part No. used

Man. Part No. 3421821-1U
Also Replaces Aqua Flo XP2 & XP2e  0613095-2040 FMXP, 06130000, XP2553022,EX-40-2N22CE
