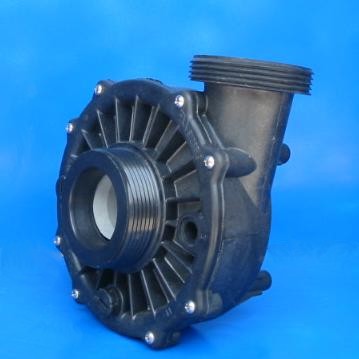

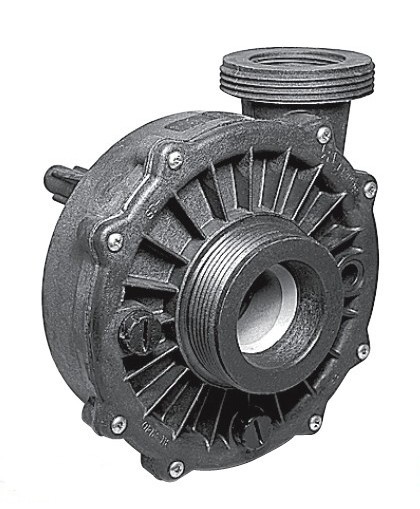

Waterway Hi-Flo Side Discharge Pump Wet End, 4hp
|
|
Part Number: 310-1160SD
Manufacturer: Waterway Plastics
Manufacturer Part No: 310-1160SD
* Whole number only
|
Waterway Hi-Flo Side Discharge Wet End 1-1/2hp, Part No. 310-1140SD
Features:
- 2" Intake and 2" Discharge

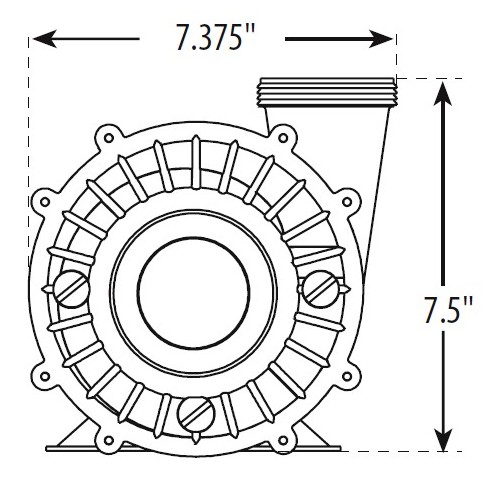

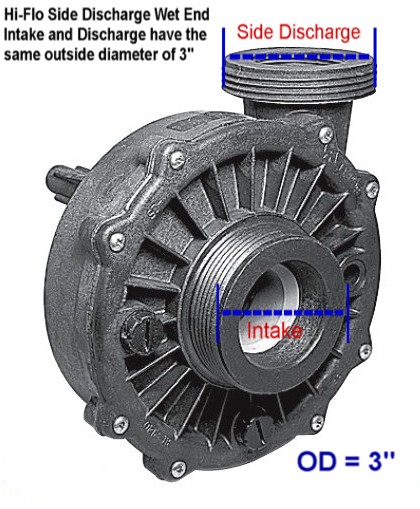

- Outside diameter of Intake and Discharge measures 3 inches (see picture above)

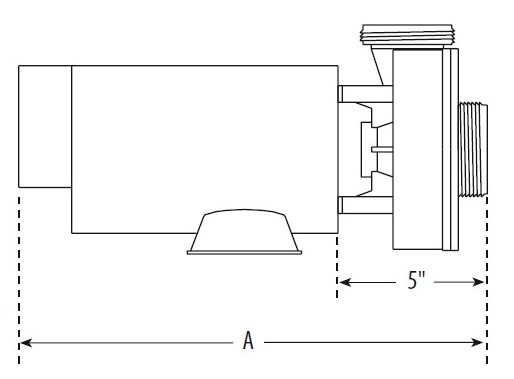

- Use with a 48 Frame motor
- 1 year Manufacturer's warranty
PART NO.
|
HORSEPOWER
|
*COMPLETE PUMP NO. |
310-1130SD
|
1
|
3420410-10, 3410410-10, SD-10-2N11C, SD-10-2N11F.PH1100,PH2100 |
310-1140SD
|
1-1/2
|
3420610-10, 3420620-10,3410612-10, SD-15-2N11C,SD-15-2N11F, PH1150, PH2150
|
310-1141SD
|
2
|
3420810-10, 3420820-10,3410830-10,SD-20-2N11C,SD-20-2N22C,SD-20-2N11F,SD-20-2N22F,PH1200,PH2200
|
310-1150SD
|
3
|
341221-10,SD-30-2N22C,SD-30-2N22F
|
310-1160SD
|
4
|
3421621-10,3411621-10,SD-40-2N22C,SD-40-2N22F,SD-45-2N22C,SD-45-2N22F
|
* Some of the complete pump Reference Numbers that this pump wet end may be used for. There are many others.
Part No. 3420410-10, 3420610-10, 3420620-10, 3420810-10, 3420820-10, 3421221-10,3421621-10, Other Part No. SD-10-2N11C,SD-15-2N11C,SD-15-2N22C,SD-20-2N11C,SD-20-2N22C,SD-30-2N22C,SD-40-2N22C,SD-10-2N11F,SD-15-2N11F,SD-15-2N22F,SD-20-2N11F,SD-20-2N22F,SD-30-2N22F,SD-40-2N22F,Waterway Hi-flo side discharge,3420410-10,3420421-10,3420610-10,3420620-10,3420810-10,3420820-10,3421221-10,34216721-1,310-1130sd,310-1140sd,310-1141sd,310-1150sd,310-1160sd,Waterway hi-flo,waterway plastics,waterway pump,waterway pump end,waterway wet end,waterway hiflo side discharge,hiflo side discharge pump
|
|
|
|
|
|
Man. Part No. 400-5670
2 inch pump union for Hi-flo and 2 inch Executive
|
|
|
|
|
|
|
GE Marathon Spa Pump Motor. 3.3-4.5 HP, 2-Speed, 48 Frame, 230V, 13.0 / 3.7 AMPS , Part # 5KCR39UN6098X, 5406,Gulfcoast Spa, Hydro Spa, Premium Leisure, Go Spa Models: 620, 616, 621, 622
|
|
|
|
|
|
|
AO Smith Century Flex 48 LASAR Spa Pump Motor. 3.5/4.5 HP, 2-Speed, 48 Frame, 230V 12.0/3.5AMPS, Part # 184821, BN62 / BN63
|
|
|
|
|
: Special Order - Please call (727)944-5525 for details and pricing.
|
|
|
|
4hp Waterway Plastics Hi-Flo side discharge pump wet end assembled to a 48 frame, 4hp, 2-speed 230V spa motor.
Manufacturer Part No. 3421221-10 Other Part No. SD-40-2N22C,SD-40-2N22F,SD-45-2N22C,SD-45-2N22F
|
|
|
|
|
