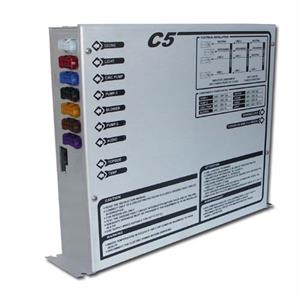

United Spas C5 G Digital Spa Control System with T7 Topside control, CGT7

<< Previous in Spa Controls & Packs Next in Spa Controls & Packs >>

List: $419.00
: $345.00
You Save: $74.00 (18 %)
Part Number: CGT7
Manufacturer: United Spas
Manufacturer Part No: CGT7, C5-g

More Options
United Spas C5 G Digital Spa Control System with T7 Topside control, CGT7
For Gas Heater Systems


Learn more about the LED bulb - click here
Learn more about the United Spa Controls on You Tube- Click Here
We can help you customize your spa control. Just email us at  or give us a call (727)944-5525 with any questions.

Standard Features:
- Self-Standing Aluminum Control
- Dual Voltage (120V/240V) Operation
- T7 Digital Topside
- Topside Adapter/ Extension Face Plate
- 2 Speed 1st Pump Ready w/Cord included
- 1 Speed 2nd Pump Ready
- Circulation Pump Ready
- 1 Speed Aux Pump (Jet or Air) Ready
- Spa Light Ready w/Cord 12V
- Ozone Ready
- Connection to Power Gas Heater's Pilot
ETL Listed (USA & Canada - File: 119733)
UL STD 1563 - 5th Edition  CSA C22.2 NO. 218.1

- 11"H X 14.5"W X 3"D (without white heater tail pieces)
- 7.50 lbs. (without  topside/cable)
- Mounting Hole Dimensions 13.25" X 2.63"
- T7 Topside Dimensions: 5" x 2.5"
- Adapter Face Plate Dimensions:  8-1/4" x 3-3/8"
- The included T7 Topside requires a 1.75" hole saw to install
NOTE: These units come standard with the cords for the light and a two speed primary pump, if additional AMP cords are needed please check out the 'Cords and Receptacles' section of the store. If you order them above with the spa control you will save a couple of dollars.
The C5 Series electronic controls now feature our fifth generation electronic power board, the B8 power board. The new B8 board feature 'zero-crossing' technology. This means that the relays are now only engaged at the optimal zero crossing of AC power, which is easier on the relays, and easier on the components in the spa. Every trace on these boards have been carefully engineered, with low voltage circuitry separated from high-voltage circuitry, and utilizing solid brass bars instead of printed copper traces for high voltage power. This unique design ensures the safety and longevity of our control systems.

  C5 control boxes with the new B8 board now ship with our new dual-voltage transformers. The days of swapping out transformers to switch between 240V and 120V power hook-up are over! With these new transformers, and the addition of two additional 2-wire receptacles to the B8 board, incoming power voltage can be switch by moving the transformer's 2-pin power selector plug between the B8's 120V and 240V receptacles.

With the addition of the new dual-voltage transformers, the C5 control series are now the only controls on the market that come out of the box ready to operate at 120V or 240V (3-wire or 4-wire), at 50Hz or 60Hz, and configurable to 40 different hardware configurations. That makes any C5 capable of operating almost any spa, anywhere in the world, right out of the box!
We have included the Topside Extension Plate if you are replacing a larger topside then the T7.  Be sure to order a 1/4" Thermowell/Bushing (dry sensor well/housing) if the spa you are installing the control into doesn't already have one installed. (Available as an option above)
