United Spas C6 B Digital Spa Control System with T7 Topside Control

<< Previous in Spa Controls & Packs

Next in Spa Controls & Packs >>

: $500.00

Part Number: CB117S

Manufacturer: United Spas

Manufacturer Part No: CB117S

* denotes required field

If your spa control is 110V, Do you need a power cord?*

A cord is included for the main pump, Do you need a cord for a second pump?*

If you have a second pump on your spa, What is the voltage?*

Do you need a cord for an air blower?*

Do you need a cord for an ozonator?*

Do you need a cord for the circulation pump? (110V- usually under 1/8hp- runs 24hrs.)*

Do you need a cord for Audio/Aux?*

Quantity:

Email this page to a friend

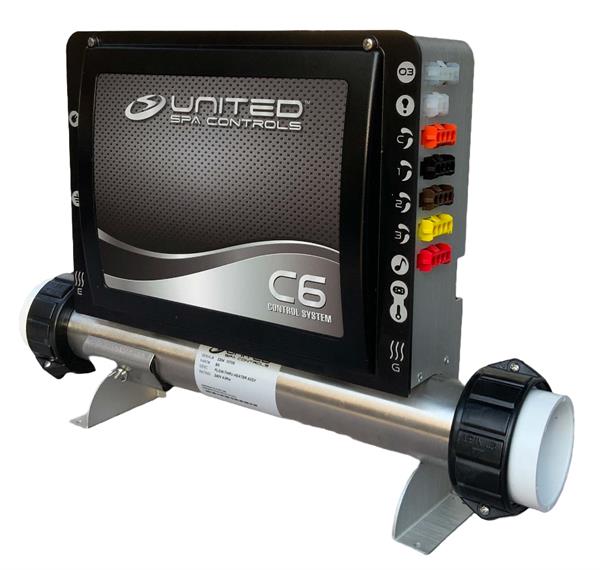

United Spas C6 B Digital Spa Control System with T7 Topside control

Bottom Mount Flo-Thru Stainless Steel Heater

Learn more about the United Spa Controls on You Tube- Click Here
We can help you customize your spa control. Just email us at Tech@spaquip.com or give us a call (727)934-4016 with any questions.

Standard Features:
- Self-Standing Spa Control
- Dual-Voltage (120V/240V) Operation*
- T7 Digital Topside included
- 2 Speed 1st Pump Ready w/Cord included 240V/120V -12V
- 1 Speed 2nd Pump Ready 240V/120V - 12A
- 1 Speed Aux Pump (Jet or Air) Ready 240V/120V - 2A
- Spa Light Ready w/Cord 12V -.9A or 120V - 2A included
- Ozone Ready 240V/120V -1A

- Audio Ready 240V/120V - 4A
- Flo-Thru 5kw Stainless Steel Heater, 25 GPM Minumum

ETL Listed (USA & Canada - File: 119733)

UL STD 1563 - 5th Edition CSA C22.2 NO. 218.1
* Transformer is factory set to 240V incoming power, but can be easily converted to 120V (See C5 Installation Manual)

Dimensions:
- 11.25"H X 15.50"W X 3.25"D (without white heater tail pieces)
- 7.50 lbs. (without topside/cable)

- Mounting Hole Dimensions 13.25" X 2.63"

- T8-X Topside Dimensions: 6.375" x 3.375"

- Adapter Face Plate Dimensions:
- The included T8-X Topside requires a 2.25" hole saw to install

NOTE: These units come standard with the cords for the light and a two speed primary pump, if additional AMP cords are needed please check out the 'Cords and Receptacles' section of the store. If you order them above with the spa control you will save a couple of dollars.
The C5 Series electronic controls now feature our fifth generation electronic power board, the B8 power board. The new B8 board feature 'zero-crossing' technology. This means that the relays are now only engaged at the optimal zero crossing of AC power, which is easier on the relays, and easier on the components in the spa. Every trace on these boards have been carefully engineered, with low voltage circuitry separated from high-voltage circuitry, and utilizing solid brass bars instead of printed copper traces for high voltage power. This unique design ensures the safety and longevity of our control systems.

C5 control boxes with the new B8 board now ship with our new dual-voltage transformers. The days of swapping out transformers to switch between 240V and 120V power hook-up are over! With these new transformers, and the addition of two additional 2-wire receptacles to the B8 board, incoming power voltage can be switch by moving the transformer's 2-pin power selector plug between the B8's 120V and 240V receptacles.

With the addition of the new dual-voltage transformers, the C6 control series are now the only controls on the market that come out of the box ready to operate at 120V or 240V (3-wire or 4-wire), at 50Hz or 60Hz, and configurable to 40 different hardware configurations. That makes any C6 capable of operating almost any spa, anywhere in the world, right out of the box!

Be sure to order a 1/4" Thermowell/Bushing (dry sensor well/housing) if the spa you are installing the control into doesn't already have one installed. (Available as an option above)
