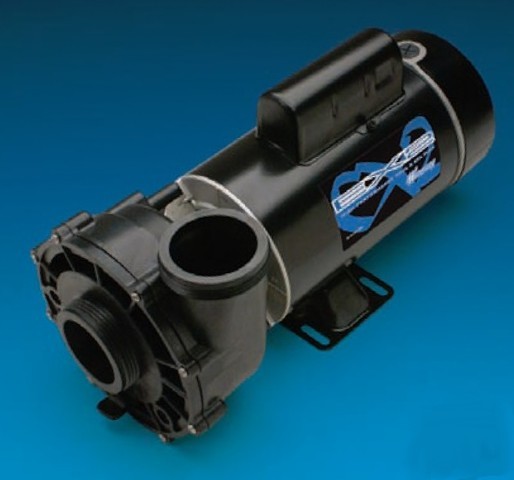

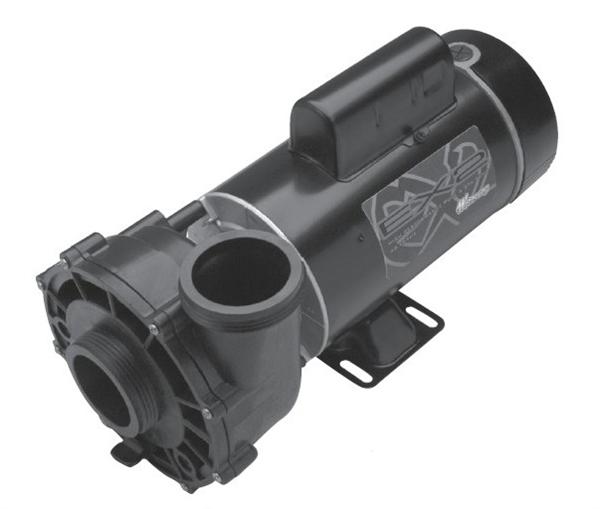

Waterway EX2, 48 Frame Spa Pump, 1.5hp, 115V

<< Previous in Waterway Spa Pumps Next in Waterway Spa Pumps >>

: $279.00
Part Number: 3420610-1U
Manufacturer: Waterway Plastics
Manufacturer Part No: 3420610-1U
Waterway Plastics EX2 Spa Pump, 1-1/2hp hot tub pump, 115V
48 Frame
2-speed, 13.8 / 3.6 Amps
115V, 60 Hz

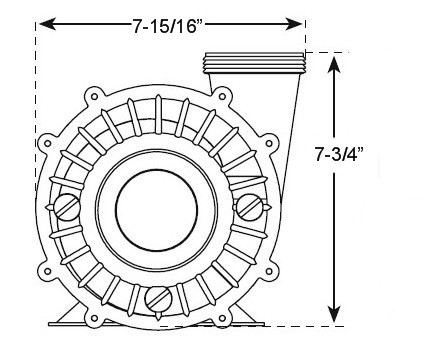

2” intake and a 2” discharge (measures approx. 3" OD)
Man. Part No. 3420610-1U Also Replaces Aqua Flo XP2 06115000-1040

Features:
  • True continuous rated horsepower
  • 48 Frame, Dual Speed (energy saving)
  • Use more jets per pump
  • Same physical size as Aqua-Flo XP2, XP2e (fits within the same volume envelope)
  • Can be used as a substitute or retrofit to Aqua-Flo model XP2 or XP2e pumps
  • Can also replace similar pumps and wet ends offered by other domestic and foreign suppliers
  • Made in USA with highest quality materials with UL and CUL certifications
  • CE and TUV certification on export pumps to ensure product performance for you and your customers
  • Equipped with the highest quality Viton Seals
  • Equipped with high efficiency electrical motors, custom designed for spa applications

Manufacture Part No.
Horsepower
HZ
Voltage
Amps
*Replaces Aqua-Flo Part No.
 3420610-1U
1.5 FULL RATED
60
115
13.8 / 3.6
06115000-1040
3421021-1U
2.0 FULL RATED
60
230
9.0 / 2.8
06120500-2040
3421020-1U
2.5 FULL RATED/ 3.0 UP RATED
60
230
11.0 / 3.3
06125000-1040
3421821-1U
3.0 FULL RATED/ 4.0 UP RATED
60
230
12.0 / 3.5
0613095-2040

*There may be several other Part No. used
Man. Part No. 3420610-1U Also Replaces Aqua Flo XP2 06115000-1040, XP2 5511521
EX-15-2N11CE,EX-20-2N11CE,XP2,XP2E
