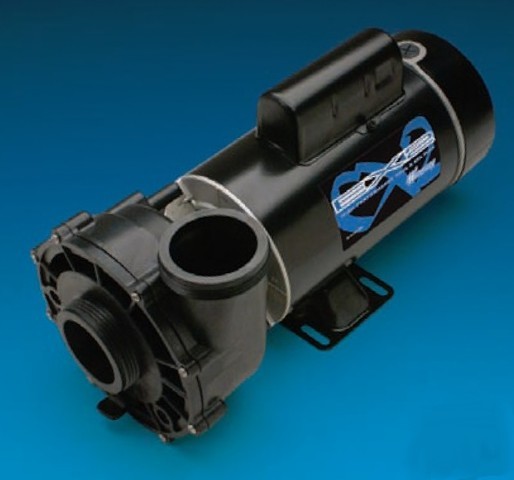

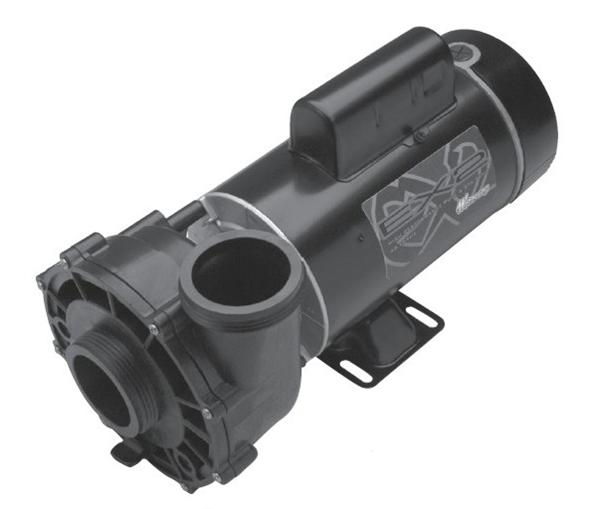

Waterway EX2, 48 Frame Spa Pump, 2.5/3hp, 230V

<< Previous in Waterway Spa Pumps Next in Waterway Spa Pumps >>

: $299.00
Part Number: 3421020-1U
Manufacturer: Waterway Plastics
Manufacturer Part No: 3421020-1U

Waterway Plastics EX2 Spa Pump, 2.5 / 3hp hot tub pump, 230V

48 Frame
2-speed, 11.0 / 3.3 Amps
230V, 60 Hz

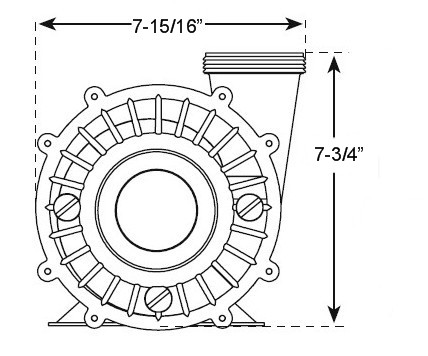

2” intake and a 2” discharge (measures approx. 3" OD)

Man. Part No. 3421020-1U Also Replaces Aqua Flo XP2 & XP2e  06120500-1040, 0612539, 061250000, XP255 2522,
EX-30-2N22CE, EX-25-2N22CE

Features:
  • True continuous rated horsepower
  • 48 Frame, Dual Speed (energy saving)
  • Use more jets per pump
  • Same physical size as Aqua-Flo XP2, XP2e (fits within the same volume envelope)
  • Can be used as a substitute or retrofit to Aqua-Flo model XP2 or XP2e pumps
  • Can also replace similar pumps and wet ends offered by other domestic and foreign suppliers
  • Made in USA with highest quality materials with UL and CUL certifications
  • CE and TUV certification on export pumps to ensure product performance for you and your customers
  • Equipped with the highest quality Viton Seals
  • Equipped with high efficiency electrical motors, custom designed for spa applications
Manufacture Part No.

Horsepower

HZ

Voltage

Amps

*Replaces Aqua-Flo Part No.

 3420610-1U

1.5 FULL RATED

60

115

13.8 / 3.6

06115000-1040

3421021-1U

2.0 FULL RATED

60

230

9.0 / 2.8

06120500-2040

3421020-1U

2.5 FULL RATED/ 3.0 UP RATED

60

230

11.0 / 3.3

06125000-1040

3421821-1U

3.0 FULL RATED/ 4.0 UP RATED

60

230

12.0 / 3.5

0613095-2040


*There may be several other Part No. used
Man. Part No. 3421020-1U Also Replaces Aqua Flo XP2 & XP2e  06120500-1040, 0612539, 061250000, XP255 2522, EX-30-2N22CE, EX-25-2N22CE
